TNC系列射频同轴连接器
TNC系列产品是一种螺纹连接式射频同轴连接器，它具有工作频带宽、连接可靠、抗振性能良好等特点，可供无线电设备和仪器中连接电缆用。
The TNC series products are a kind of whorl joining, it has work width frequently, join reliable, such characteristics as ant-vibration performance is good, Suitable for radio equipment and instrument and join the cable to use.

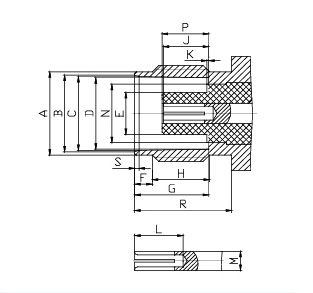

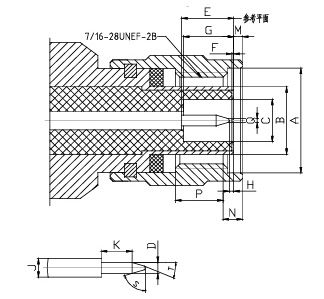

界面尺寸 INTERFACE MATING DIMENSIONS
|
插头(Plug) |
|
插座(Ｊack) |
|
|
|
|
|
|
Plug |
|
Code |
Millimeters |
|
Min |
Max |
|
A |
11.18 |
- |
|
B |
- |
8.18 |
|
C |
4.83 |
- |
|
D |
1.32 |
1.37 |
|
E |
5.33 |
5.84 |
|
F |
0.15 |
- |
|
G |
5.28 |
5.79 |
|
H |
0.08 |
- |
|
J |
2.06 |
2.21 |
|
K |
1.98 |
- |
|
M |
- |
1.98 |
|
N |
1.60 |
- |
|
P |
3.96 |
- |
|
Q |
- |
0.64 |
|
S |
55° |
65° |
|
T |
1° |
4° | |
|
|
|
Plug |
|
Code |
Millimeters |
|
Min |
Max |
|
A |
9.60 |
9.70 |
|
B |
8.79 |
9.04 |
|
C |
8.31 |
8.46 |
|
D |
8.10 |
8.15 |
|
E |
- |
4.72 |
|
F |
1.73 |
2.24 |
|
G |
8.31 |
8.51 |
|
H |
4.75 |
- |
|
J |
4.72 |
5.23 |
|
K |
- |
0.15 |
|
L |
4.95 |
- |
|
M |
2.06 |
2.21 |
|
N |
- |
6.50 |
|
P |
4.78 |
5.28 |
|
R |
10.52 |
- |
|
S |
0.38 |
0.76 | |
主要技术特性 TECHNICAL SPECIFICATIONS
|
温度范围 Temp.range |
-65～+165℃ (PE Cable-40～+85℃） |
|
振动 Vibration |
MIL-STD-202.Method 213 |
|
特性阻抗 Impedance |
50Ω |
|
频率范围 Frequency Range |
DC～11GHz |
|
工作电压 Working Voltage |
500Vmax （有效值） |
|
耐压 Withstand Voltage |
1500Vrms （海平面有效值） |
|
接触电阻 Contact resistance |
内导体之间 Center Contact≤3mΩ |
|
外导体之间 Outer Contact≤2mΩ |
|
绝缘电阻 Insulation resistance |
≥5000MΩ |
|
电压驻波比 VSWR |
直式 Right angle≤1.22 |
|
弯式 Straight≤1.30 |
|
耐用性 Durability (mating) |
≥500次 (cycles) |
材料与涂覆 MATERIAL & PLATING
|
壳体 shell |
黄铜 brass |
镀亮镍 nickel plated |
|
插针 contact pin |
黄铜 brass |
镀硬金或银 gold or silver plated |
|
插孔 socket |
铍青铜 beryllium |
镀硬金或银 gold or silver plated |
|
弹性接触件 elastic contact |
铍青铜 beryllium |
镀硬金或银 gold or silver plated |
|
绝缘体 insulator |
聚四氟乙烯 PTFE |
|
|
压接套 crimping suite |
铜合金 copper alloy |
镀镍 nickel plated |
|
O型密封件 o-ring sealing |
硅橡胶 6146 silastic |
|
适用技术标准 APPLCABLE STANDARD
MIL-C-39012
CECC 22200
IEC 60169-17 |
