UHF（SL16）系列射频同轴连接器
UHF（SL16）系列是一种对阻抗匹配无严格要求的，采用端齿啮合的连接器，一般装置设计用至500MHz时运作良好。该产品特别适用在所有民用波段通讯系统、闭路电视、车载无线电装置、船舰对岸通讯，登陆降落系统及地面控制装置等。其特点是抗振性好，连接可靠，性能稳定。
UHF Radio frequency of the type coaxial joining machine UHF Series that each match and have adoption end tooth that require strictly nibble general devices design and it spends to be at MHZ good operation the whole person who join to impedance. This very suitable at one civil wave hand communication system closed-circuit TV train yeas radio device products, Ship warship the other bank communication, land and fall and ground control device, etc. system its characteristic that anti-vibration nature is good, join reliable, performance steadily.

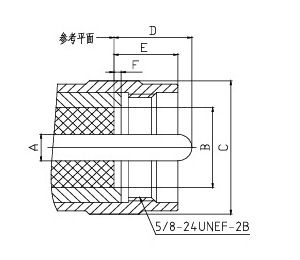

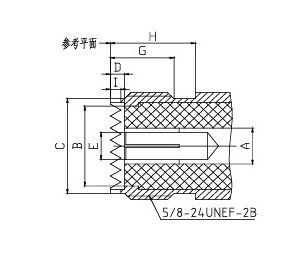

界面尺寸 INTERFACE MATING DIMENSIONS
|
插头(Plug) |
|
插座(Ｊack) |
|
|
|
|
|
|
Plug |
|
Code |
Millimeters |
|
Min |
Max |
|
A |
3.91 |
4.01 |
|
B |
11.56 |
12.22 |
|
C |
- |
21.00 |
|
D |
- |
11.10 |
|
E |
- |
9.91 |
|
F |
- |
0.89 | |
|
|
|
Plug |
|
Code |
Millimeters |
|
Min |
Max |
|
A |
- |
- |
|
B |
11.56 |
12.22 |
|
C |
14.00 |
14.25 |
|
D |
1.02 |
- |
|
E |
4.04 |
- |
|
G |
7.90 |
- |
|
H |
11.10 |
- |
|
I |
0.89 |
- | |
主要技术特性 TECHNICAL SPECIFICATIONS
|
温度范围 Temp.range |
-40～+85℃ |
|
特性阻抗 Impedance |
无恒定常数 Non-constant |
|
频率范围 Frequency Range |
DC～300MHz |
|
工作电压 Working Voltage |
750Vmax （有效值） |
|
耐压 Withstand Voltage |
2000Vrms （海平面有效值） |
|
接触电阻 Contact resistance |
内导体之间 Center Contact≤5mΩ |
|
外导体之间 Outer Contact≤5mΩ |
|
绝缘电阻 Insulation resistance |
≥50000MΩ |
|
电压驻波比 VSWR |
直式 Right angle≤1.20 |
|
弯式 Straight≤1.30 |
|
耐用性 Durability (mating) |
≥500次 (cycles) |
材料与涂覆 MATERIAL & PLATING
|
壳体 shell |
黄铜 brass |
镀亮镍 nickel plated |
|
插针 contact pin |
黄铜 brass |
镀金或银 gold or silver plated |
|
插孔 socket |
铍青铜 beryllium |
镀金或银 gold or silver plated |
|
绝缘体 insulator |
聚四氟乙烯或聚乙烯 PTFE |
|
|
压接套 crimping suite |
铜合金 copper alloy |
镀亮镍 nickel plated |
|
O型密封件 o-ring sealing |
硅橡胶 6146 silastic |
|
适用技术标准 APPLCABLE STANDARD
CECC 60169-12
GB/T15888 |
